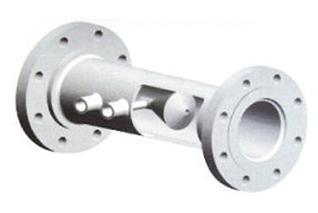

V-cone flow sensor
ZWZDH is a high-tech enterprise specializing in R&D, design, manufacturing, marketing of flow meters and industrial automation instruments as well as system engineering integrated services.
Key words:
Classification:
Description
I. Overview
V-cone flow sensor is a new differential pressure flowmeter, which can accurately measure flows of all kinds of conditions in a wide range of Reynolds number. Like other differential pressure flowmeters, it is based on Bernoulli equation of conservative energy of fluid flowing continuously in closed pipes. For ideal fluids, the velocity of medium is proportional to the square of differential pressure.
The unique physical structure of V-cone flow sensor with conical throttle not only enlarges the measurement range of medium flow, but also has the special structure of fluid rectification. Therefore, its requirement of straight pipe section is low, which is completely different from other differential pressure flowmeters that requires a long straight pipe section fluid spreading. V-cone flow sensor has the advantages of good stability and versatility of traditional differential pressure flowmeter, but without the limitations of traditional differential pressure flowmeter.
II. Measuring Principle
The basic principle of V-cone flow sensor is the V-cone and the corresponding pressure tap installed in the central axis of the measuring pipe. The measuring pipe and V-cone are carefully designed and precisely machined. When the fluid flows through the V-shaped cone in the measuring pipe, f interacts with the flowing fluid and forms the flow pattern in front of the cone, and the local contraction accelerates the flow rate and reduces the static pressure. The differential pressure △P is generated in front of and behind the V-cone, of which the high pressure (positive pressure) is the static pressure PH measured at the pressure tap of the pipe wall at upstream before fluid contraction, and the low pressure (negative pressure) is the pressure PL measured at the pressure tap at the center axis of the V-shaped cone of inner cone facing downstream end.
Flow Formula:
In which:
β -- Equivalent Effective Diameter Ratio
D -- Pipeline Inner Diameter
d -- Maximum Outer Diameter of V-cone
P -- Density under Fluid Running Conditions
K -- Constant
e -- Gas Expansion Coefficient
q -- Volume Flow
III. Application and Measurement Medium
3.1 Gases
Coal gas: coke oven gas, blast furnace gas, converter gas, mixed gas, etc.
Natural gas: including natural gas with moisture content of more than 5%.
Various hydrocarbon gases: alkanes, olefins and other gases
Manufacturing of various gases: hydrogen, helium, argon, oxygen, nitrogen, etc.
Corrosive gases: wet chloride gases, etc.
Air: including water-bearing, dusty air, compressed air, etc.
Flue gas: flue gases discharged from various boilers and heating furnaces, etc.
3.2. Steam
Superheated steam Saturated steam
3.3. Liquids
Oils: crude oil, fuel oil, water-containing emulsified oil, diesel oil, etc.
Water: raw water, drinking water, production water, waste water, etc.
Various aqueous solutions: acid solution, alkali solution, saline solution, etc.
Organic chemicals: methanol, Ethylene Glycol, Xylene, etc.
3.4. Special Fluid
Oil+HC Gas+Sand
Gasified water H20+N2+ air; H20+CO2, etc.
The flow meters manufactured by our company are widely used in many fields such as metallurgy, chemical, thermoelectric, textile, pharmacy, petroleum, natural gas, paper making, tobacco, food processing, thermodynamics, etc., can be directly connected to DCS systems, suitable for various industrial sites, and can be used as a long-term flow monitoring device. Our first-class product quality and exquisite technical services obtained unanimous praise from the customers.
The company adheres to the business philosophy of "Integrity is the first user", and takes "transforming the most sophisticated measurement technology into the most easy-to-understand and easy-to-operate products" as its responsibility, striving to help customers to provide the best solutions, reduce resource waste, and enhance the effective utilization of resources through accurate measurement. The company pursues the enterprise spirit of "Integrity-based Users first", constantly develops and innovates. It takes technology as the core, regards quality as life, and takes users as God. It strives to create more excellent engineering design, and provides customers with products with higher cost performance ratio and meticulous after-sales service.
